GR-B

HT Oil Catalogue GD GR     pag.1 GR-B GRF

Up







  t max 170°C p max 40 bar
  GR 10 B - GR 15 B
  n max 3500 RPM
  GR 20 B - GR 25 B
  n max  3000 RPM
 GR 32 B- GR 40 B
  n max  2500 RPM
  GR 50 B
  n max 1000 RPM
  Avoid working at maximum speed with maximum pressure.

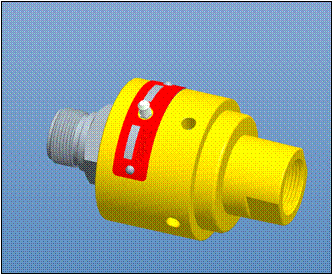

ONE WAY ROTATING JOINTS

  GR 32÷50 GR 10-25



Housing
Brass
Housing
Aluminium

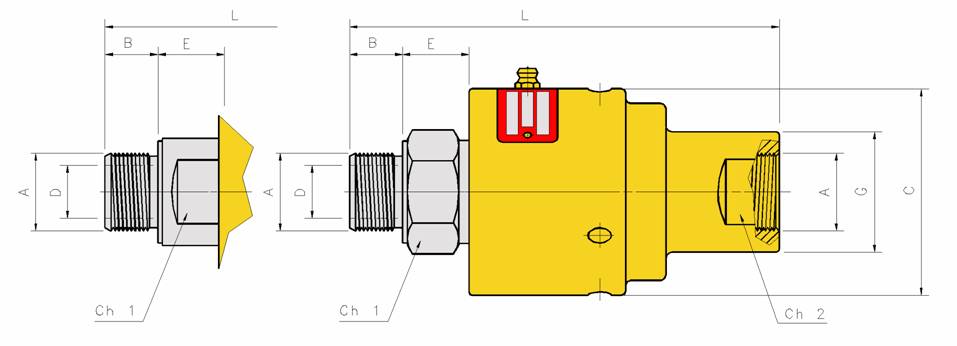

A
BSP
B
Kg
C
D
E
G
L
Ch 1
Ch 2

PDF

RH

PDF

LH

GR 10 B
GR 10 B-A
3/8 12 47 9 12 30 90 24 24
GR 15 B
GR 15 B-A
1/2 15 60 13 16 35 114 32 32
GR 20 B
GR 20 B-A
3/4 15 70 19 20.5 40 125.5 36 36
GR 25 B
GR 25 B-A
1” 20 84 25 20.5 47 147 41 41
GR 32 B
GR 32 B-A
1”1/4 25 91 32 26 60 165 50 55
GR 40 B
GR 40 B-A
1”1/2 30 108 39.5 28 75 183 55 70
GR 50 B
GR 50 B-A
2” 35 127 48 32 80 207 65 75
